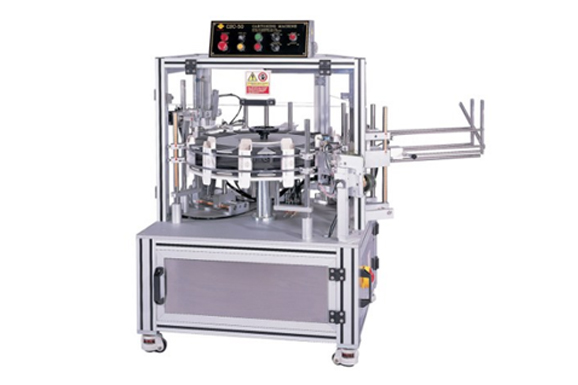

SEMI - AUTOMATIC CARTONING MACHINE

SEMI - AUTOMATIC CARTONING MACHINE

Model : SACM - 45

Model SACM - 45 Semi-Automatic Cartoning Machine (Carton Folding > Filling > Packing) it is specially design to pack small quantities multi size box. With low cost and only require small area. It is suitable for various sizes of box. The machine is a verticle type with multiple function and require a short time to change mould. The machine is maid of aluminum alloy with anode treatment. Rust proof long service life cycle and easily clean.


Suitable Usage :

Medicine, Food-stuff, Cosmetic, etc. Packing into square box.


Model SACM - 45 :

  1. Paper box's smallest size : 60 x 20 x 20 mm
  2. Paper box's largest size : 200 x 80 x 80 mm
  3. Production speed : 20-60 box per min.(According to operator's performing speed)
  4. Power Supply : 220 V : 50 / 60HZ
  5. Motor :Horsepower : 1/4HP AC Motor
  6. Vacuum Pump Hoursepower : 1/4 HP
  7. Compress air consumption : 90 L / Min.
  8. Machine : Measurement : L 1480 x W 900 xH1250 mm
  9. Machine Weight :350 Kgs.

Unitouch Packaging & Automation in Mumbai provides best Pre & Post Sales & Services. We are Semi Automatic Cartoning Machines Manufacture & Exporter in India. For your requirement for Semi Automatic Cartoning Machine in India.
